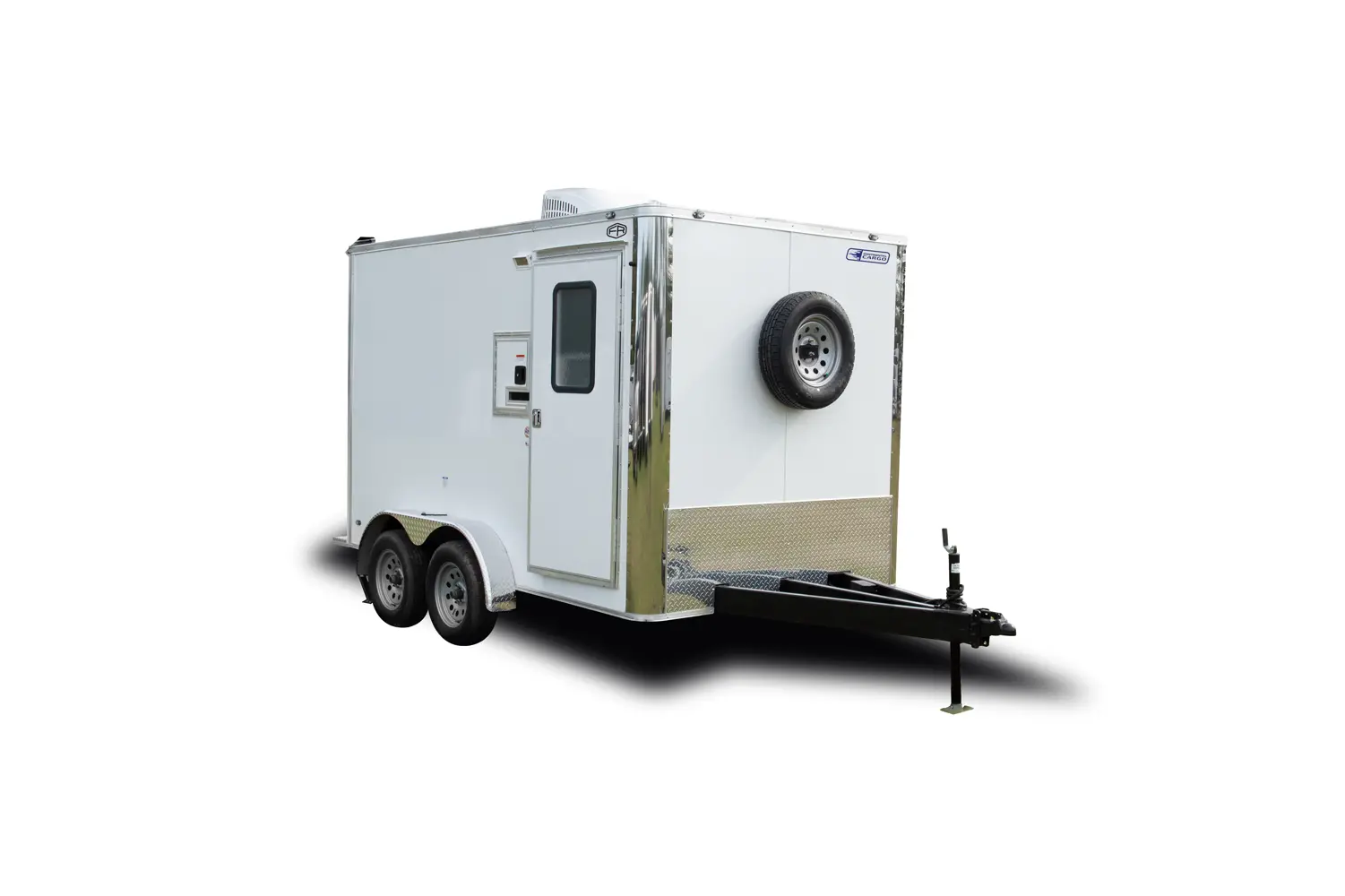

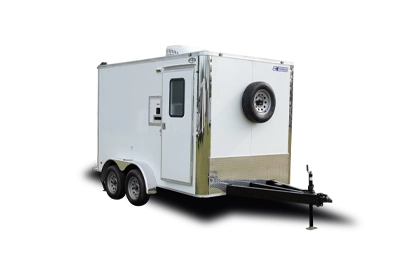

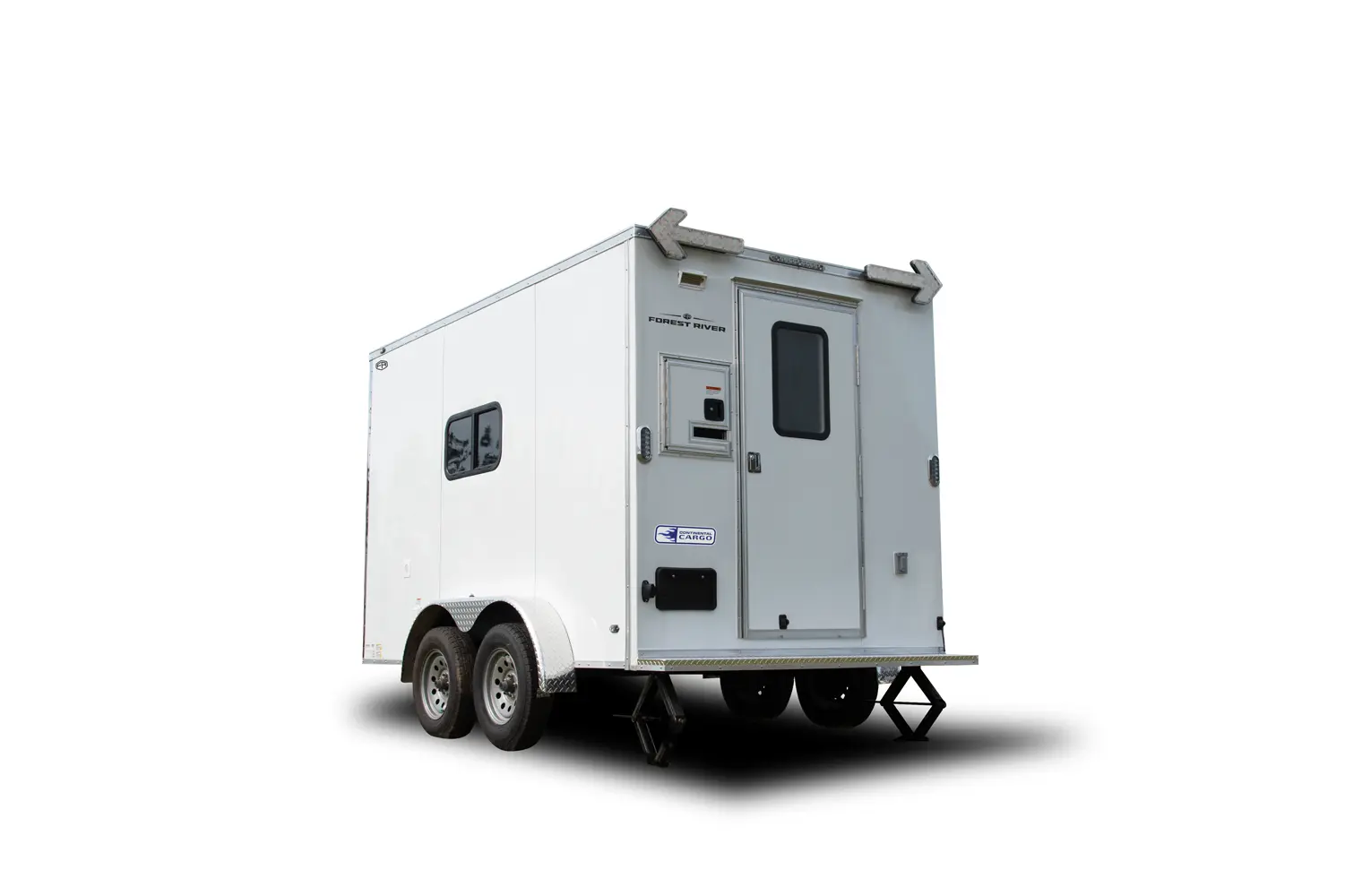

Explore Fiber Optic Splicing Trailer

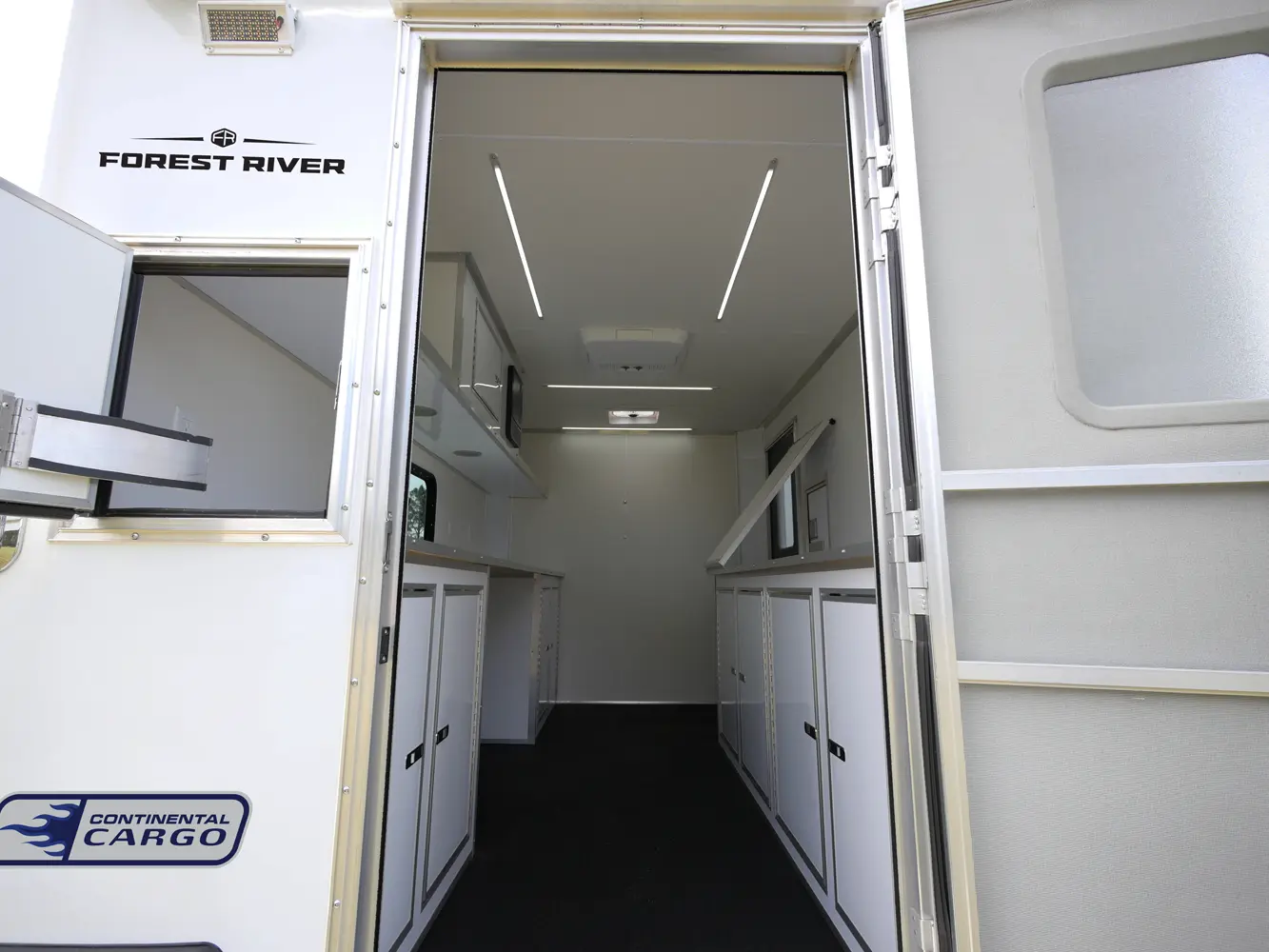

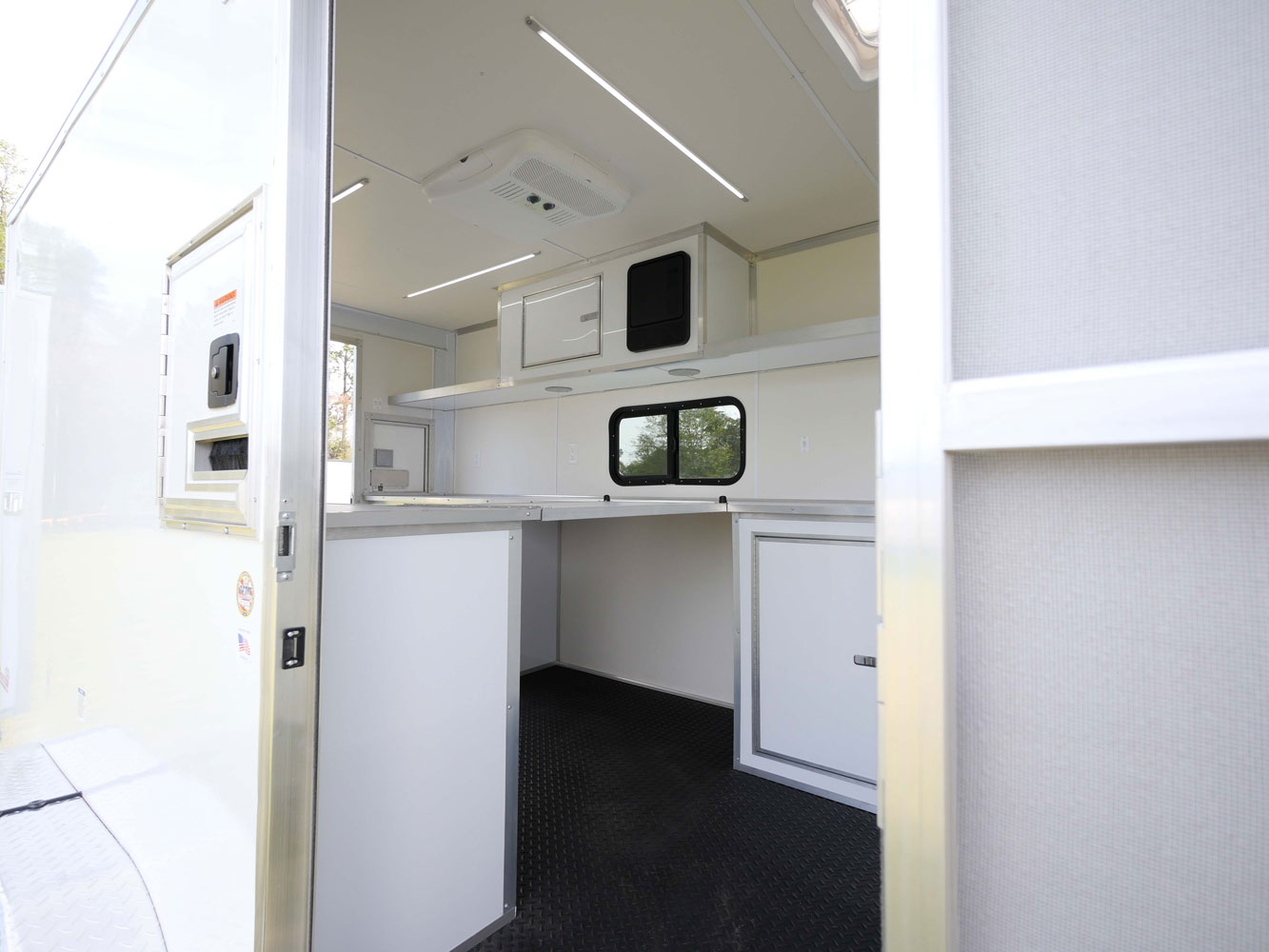

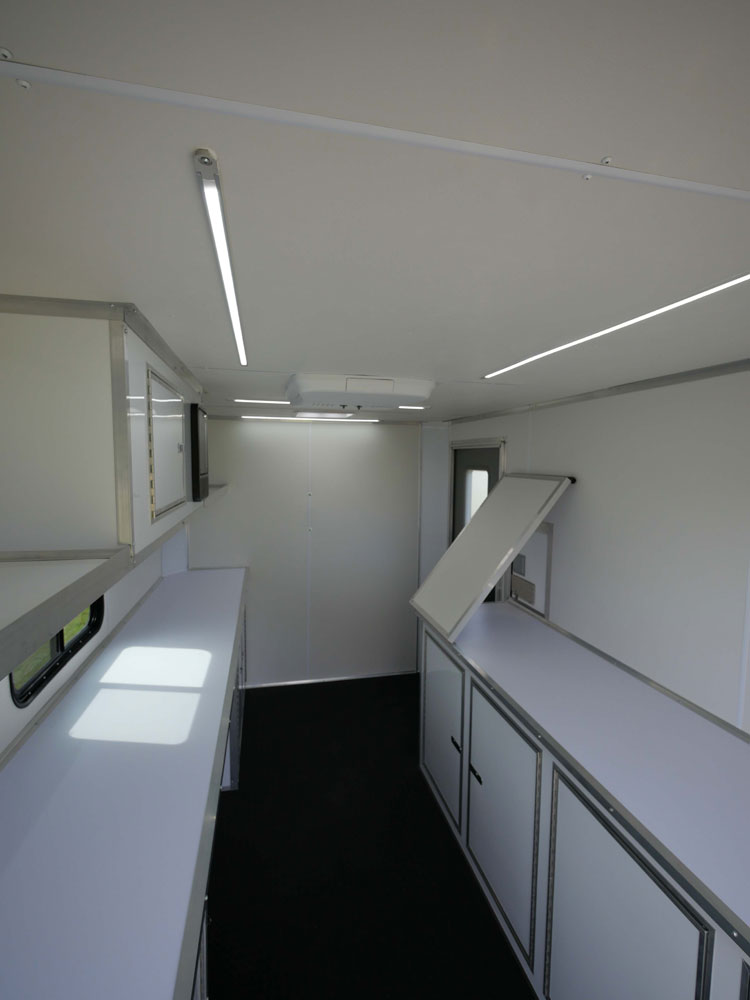

The Continental Cargo Fiber Optic Splicing Trailer is a flagship fiber optic splicing trailer trusted by leading communication companies to meet the demand for safety and durability while also providing reliable, long-lasting value and security in the field. Continental Cargo comes with Industry leading standards. This begins with aluminum or steel frame construction and premium craftsmanship. The spacious interior of the Fiber Optic Splicing Trailer allows for plenty of cabinet storage, counter space, and lighting. Neat and smooth finishes make cleaning and maintenance easy, and heating and cooling options create a comfortable working environment no matter what the weather throws at you.
-
- 2 - Flow Thru Sidewall Vents (on 5,6,7, & 8 wides)
- Aluminum Exterior Fenders
- Clear Lens LED Clearance Lights
- Clear Lens LED Strip Tail Lights
- DOT Lighting
- License Plate Holder with Light
- .030 Aluminum Exterior
- Anodized Aluminum Wrap
- Exposed Steel Painted Epoxy Black
- Tongue Jack w/ Sand Pad
- Welded Safety Chains
- Full-Color Decals
- ***Flat Front w/ Anodized Corners in place of of 18" Wedge Available
- 102" Wide Body Design
- Ramp Door with Spring Assist
- No-Show Beavertail

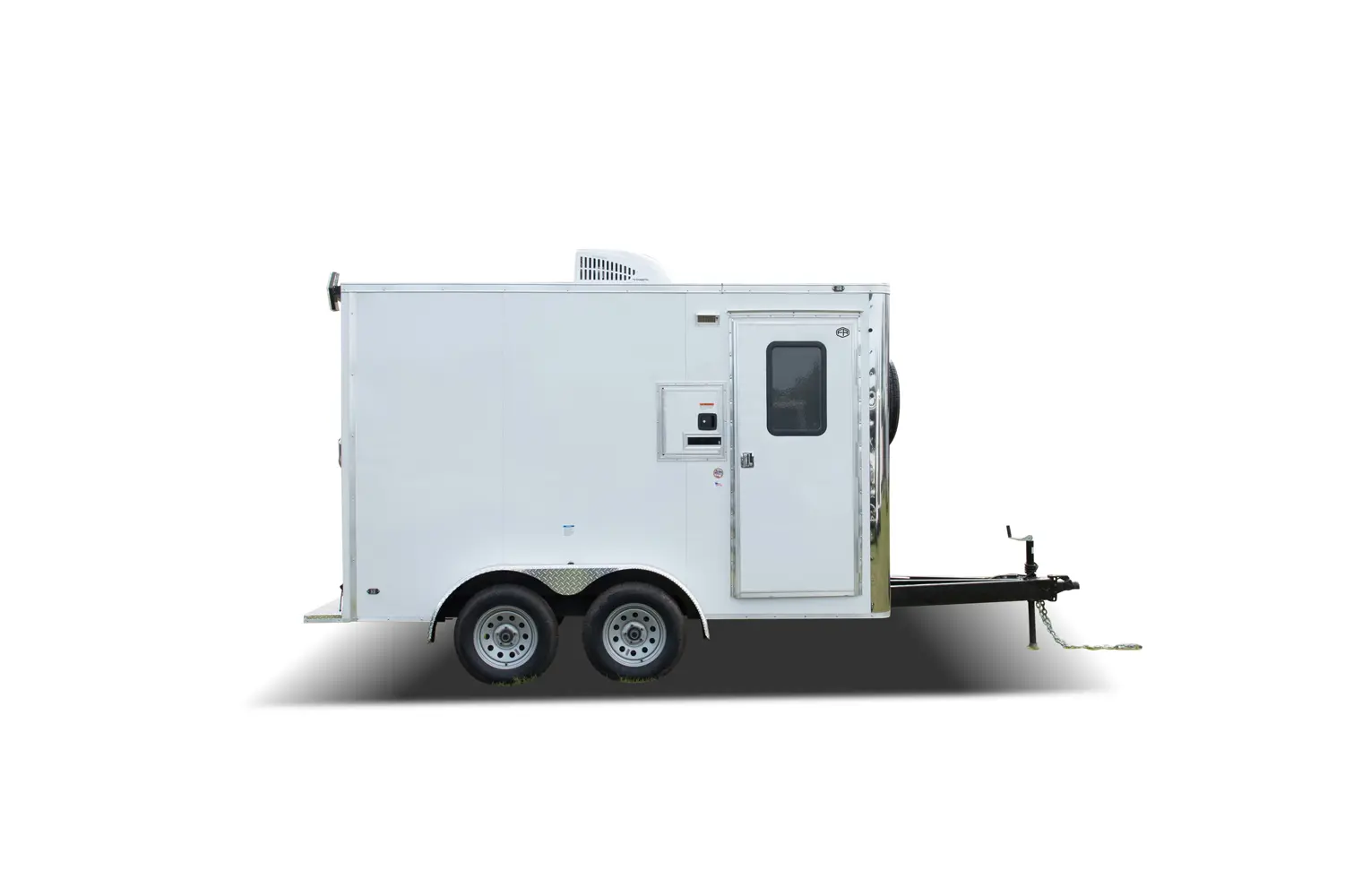

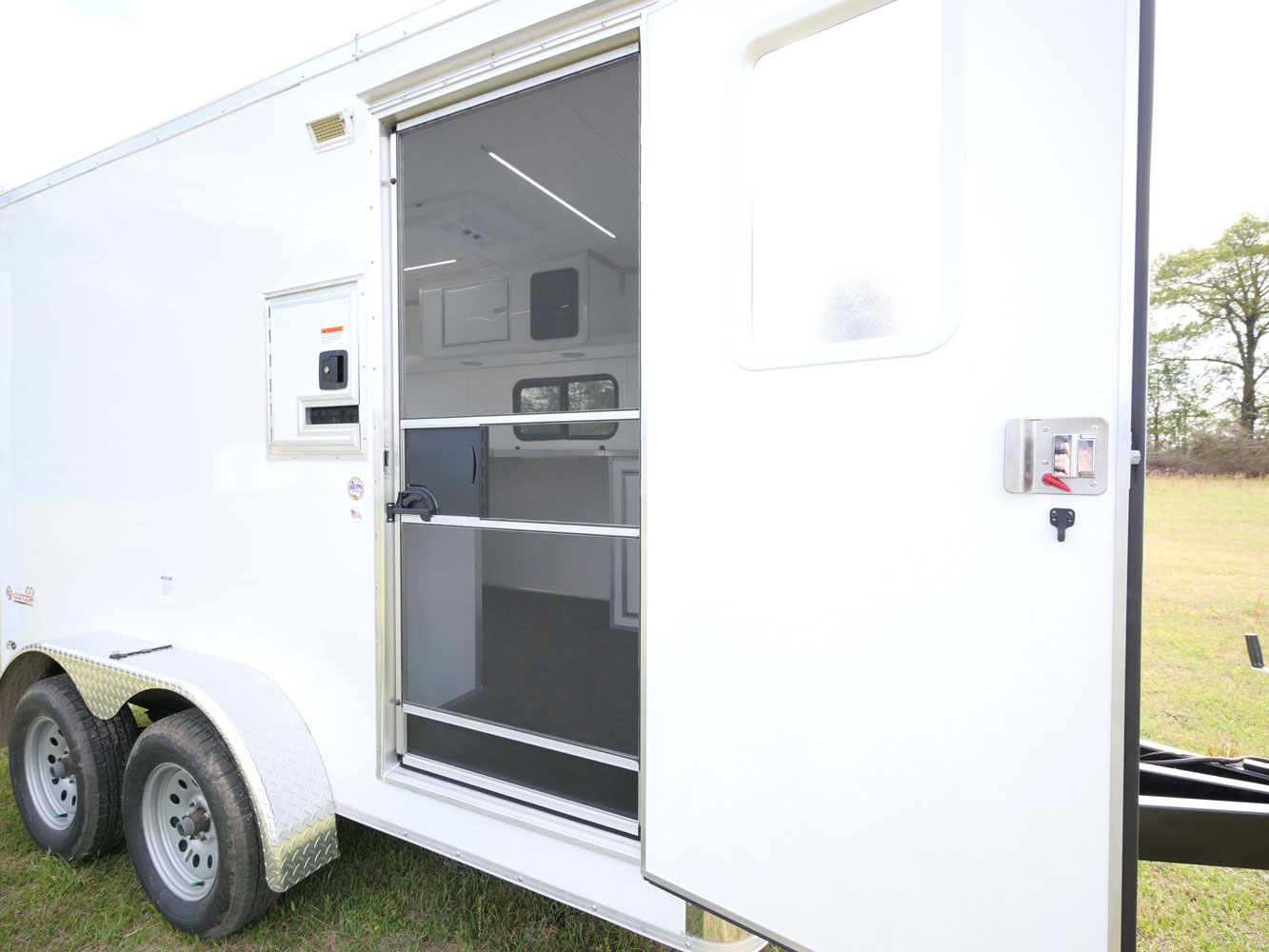

- 36" Side Door with Steel Step
- 2-12 Volt LED Dome Lights
- 1-12 Volt Switch
- 1-Roof Vent
- 1 – 12V LED Dome Light
- 16" ATP Stoneguard
- Aluminum Top Rails
- Galvanized Roof
- Radial Tires
- Silver Powder Coated Wheels
- E-Z Lube Hubs
- Leaf-Spring Axle
- Door Hold-Back on Rear Door
- Semi-Style Camlock Door Latch
- C/S Door (24" on 5 wide, 32" on6 & 7 wide, 36" on 8 wide)

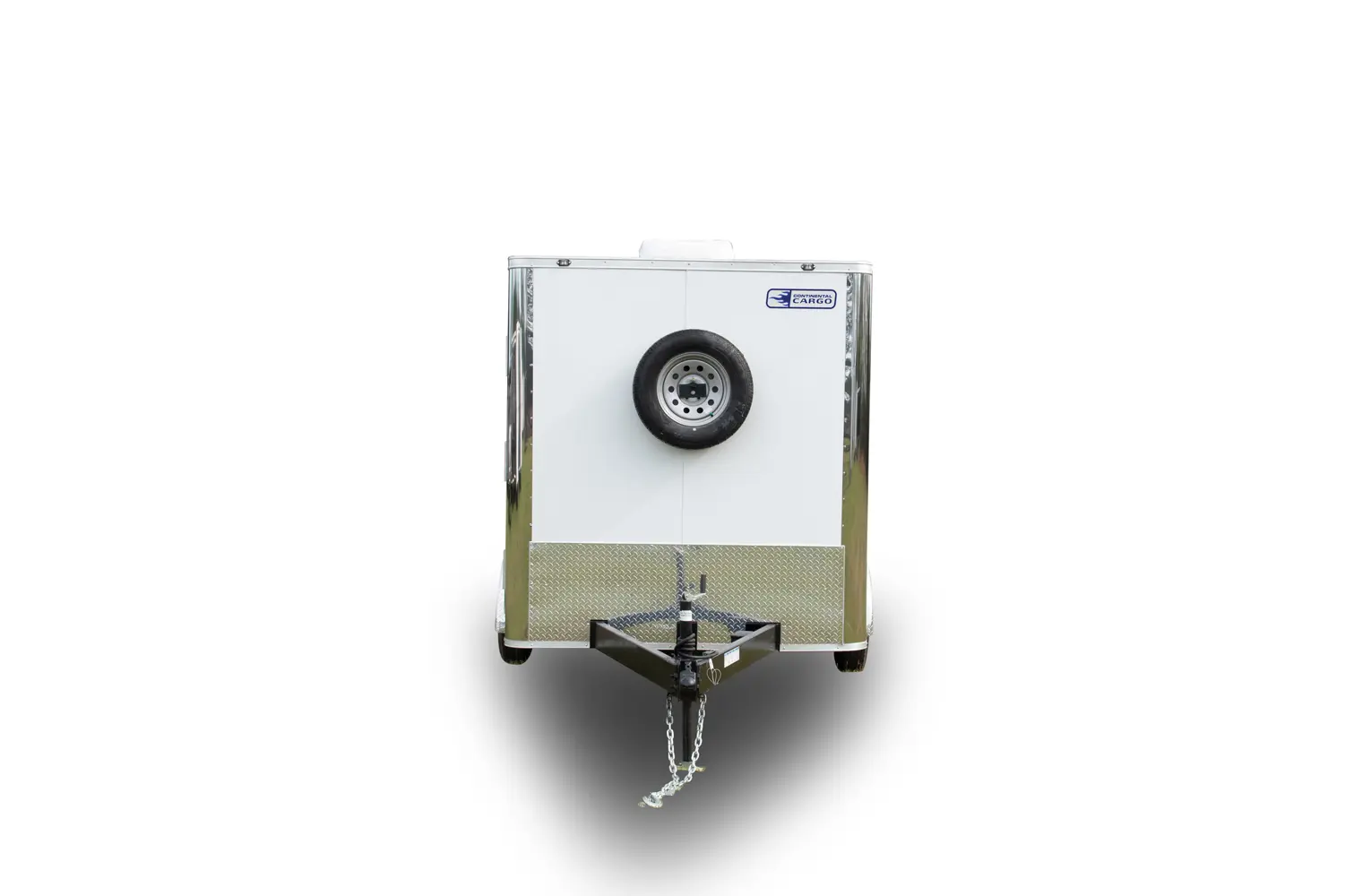

- 18" Wedge-Front Nose

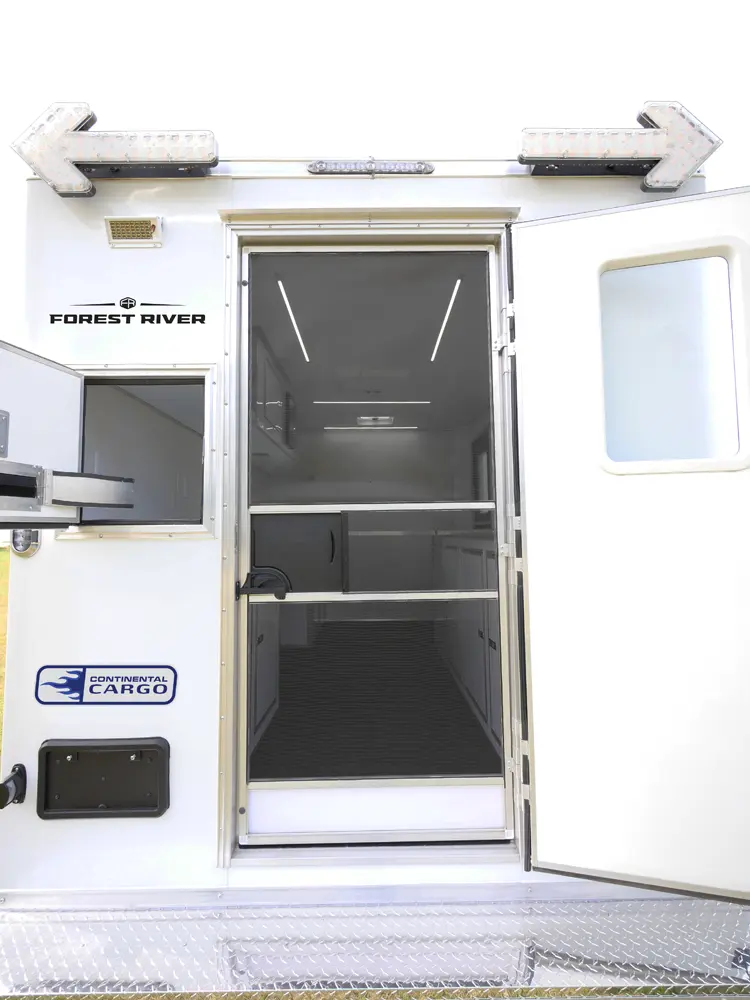

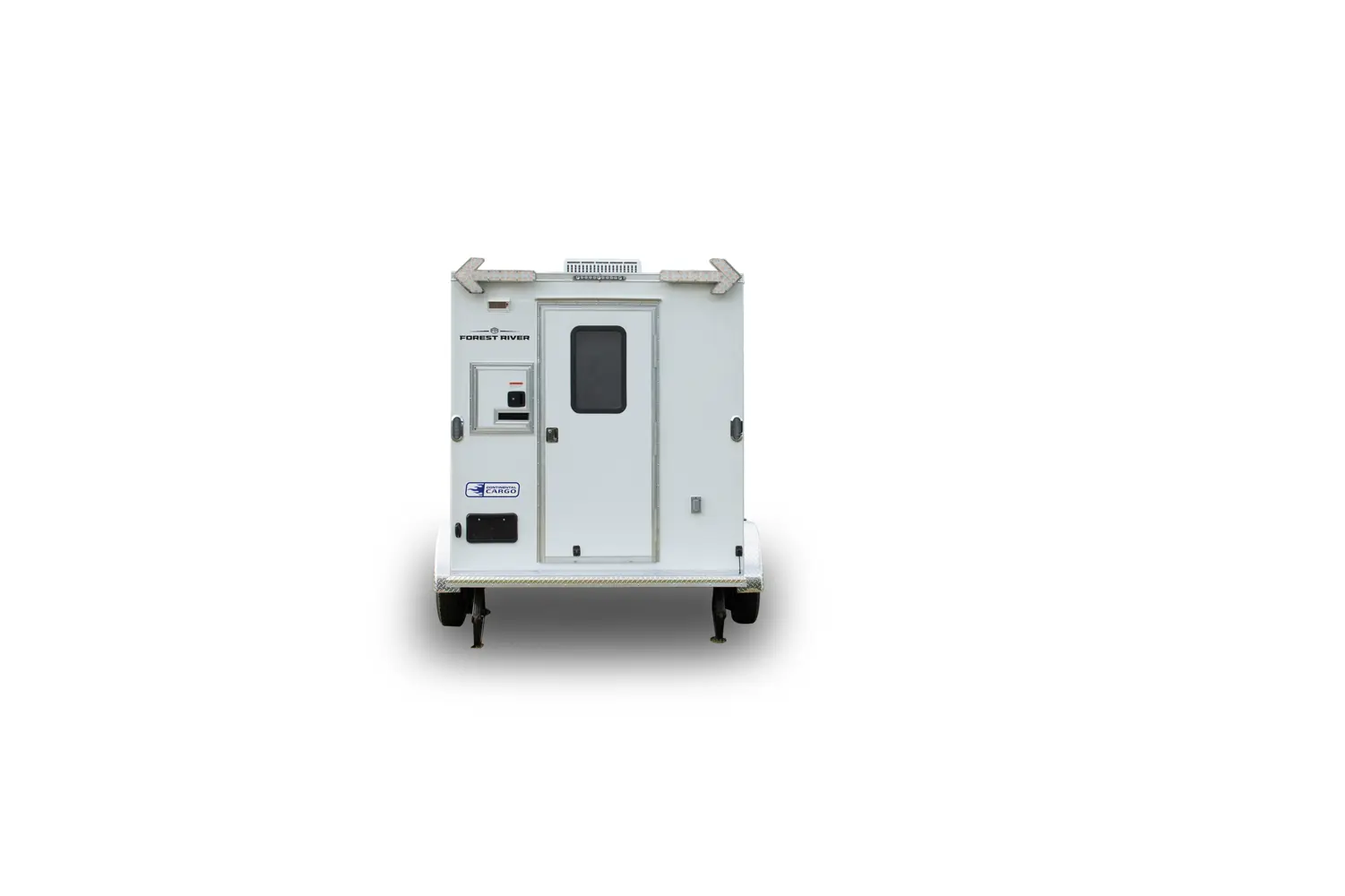

- Double Rear Doors
-
- (2) 22.5° DOWNSTART AXLES
- UPGRADE TO FORMICAH COUNTERTOPS ON BASE CAB FULL LENGTH OF TRAILER
- (2) GAS SHOCKS FOR DOORS
- (1) 12-Volt Interior Wall Switch
- (1) 12-Volt Interior Dome Light
- Additional Height 6"
- 4" Tube Frame to 6" I-Beam Upgrade
- Additional Length - OH Cabinets
- Base and Overhead Combination
- 30"x15" Horizontal Radius Window w/ Slider & Screen
- Screwless Exterior
- ST205/75R15/C Spare Tire w/ 5/Bolt Silver Wheel
- Spare Tire Mt. (Interior Wall Mount; No Cover)
- Deluxe Scissor Jacks w/ Hand Crank (5,000 lb. Capacity)
- Additional Floor Crossmembers (16" O/C)
- Adjustable 2-5/16" Ball Coupler
- FIXED ALUMINUM BUMPER COVERED IN ATP
- ALUMINUM PULL OUT STEP
- (1) 12V CUT OFF SWITCH
- (2) LED SCENE LIGHTS
- (2) SPLICING DOOR W/ FLUSHLOCK AND BRUSH GUARD
- (1) 36" AMBER DIRECTIONAL LIGHT BAR
- FORMICAH COUNTER TOPS W/HINGED L SHAPED
- 12-Volt Battery w/ Box (Int or Ext Mounted)
- 50 AMP Service Upgrade
- Upgrade to RV Door
- Alpha Rubber Tread Plate Flooring
- 110-Volt Interior Wall Recept (2 Gang)
- Torsion Rubber Ride Axle Upgrade(Per Axle)
- 3/16" White Vinyl Wall Liner
- 30-Amp Motorbase Plug
- (2) Interior Wall Recepts
- (4) 40" Led Strip Lights (1) Wall Switch
- All 110-Volt Packages require a finished ceiling
- 12 Volt LED/110-Volt Pkg w/ 30-Amp Power Center
- 15,000 BTU Roof-Mt Air Cond w/ Heat Strip
- Insulated Ceiling w/ 3/16" White Vinyl Liner
- Bead Board Insul (Styrofoam)
- 60" Extended Triple Tube Tongue
Specifications
| VHW712TA2 Get a Quote | |
| GVWR: | 7000 lb. |
| Payload Capacity: | 5150 |
| Exterior Length: | 15' 10" |
| Exterior Width: | 8' 6" |
| Exterior Height: | 8' 0" |
| Interior Length: | 13' 1" |
| Interior Width: | 6' 8" |
| Interior Height: | 6' 1" |
| Rear Door Type: | Single |
| Rear Door Width: | 5' 11" |
| Rear Door Height: | 5' 7" |
| Coupler Size: | 2-5/16" |
| Curb Weight: | 1850 |
| Hitch Weight: | 185 |
| Hitch Height: | 18" |
| Platform Height: | 19 |
| Axle: | 2 - 3500 lb. |
| Suspension: | TBD |
| Brakes: | Electric |
| Tires: | ST205/75R15/C |
| Wheels: | 5 Bolt |
| Main Frame: | 6" Tube |
| Floor (16" O/C): | 3/4" Plywood |
| Walls (16" O/C): | 3/8" Plywood |
